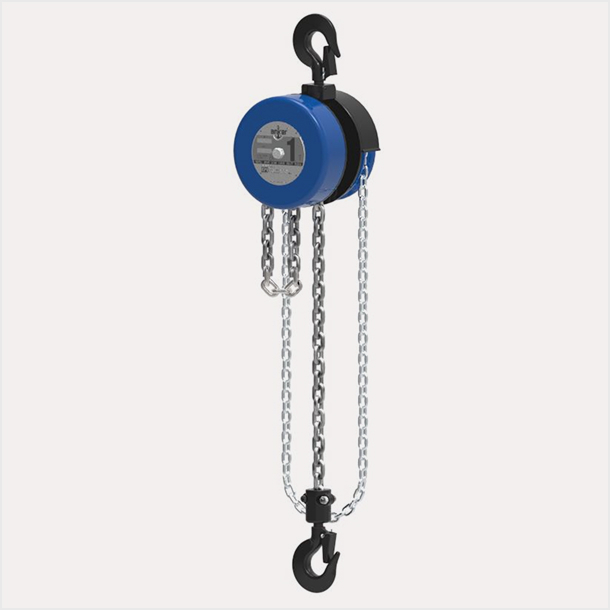

About 20 Ton Chain Pulley Block
We are considered as one of the leading manufacturers and exporters of an excellent range of 7.5 Ton Chain Pulley Block. It is widely used in cranes for material handling operations. Integrated with screw and friction disk type brake, this pulley block ensures complete safety at all positions. In addition, pockets malleable iron cast load wheel, mounted on ball bearings and spur gear reduce the pull on chain. This 7.5 Ton Chain Pulley Block is offered to clients at competitive price.
Features:
- Light weight
- Smooth passage of load chain
- Self sustaining & maintenance free friction brake
Other details:
- Triple Spur Gear Type
- Heavy Duty: Class II
- Manufactured as per IS: 3832 (Indian Standard).
- Tested at: 50% Overload.
- Hooks: As per IS: 15560 - 2005.
- Load Chain: 12 mm, Grade 80, Alloy Steel Material.
- Load Chain Wheel: S.G. Iron Casting : Accurately took, inside pounded for more existence of Main Shaft
- Braking Mechanism: Screw and Friction Disk Type" Self activating
- Hand Chain Wheel: Pressed Steel" Accurately took, Smooth Hand chain Pulling operation
- Gears: Alloy Steel Material, exact machined, rigging hobbed and callous" appropriate
Technical Specification
| Capacity: | 7.5 Ton |
| Weight of Block at | 3 Mtr. Lift: 80 Kgs. |
| Extra Weight per Meter: | 8.0 Kgs |
| No. of Falls of Load Chain: | 2 Falls |
| Overall Dimensions:
(Head room x Other Dimensions) | 850 x 320 x 230 mm |
| Pull On Hand Chain:
(Only one person required to lift the load.) | 64 Kgs |
| Velocity Ratio: | 188 |
FAQs of 20 Ton Chain Pulley Block:
Q: What is the maximum lifting capacity of the 20 Ton Chain Pulley Block?
A: The 20 Ton Chain Pulley Block has a maximum lifting capacity of 20 tons.
Q: What is the color of the 20 Ton Chain Pulley Block?
A: The 20 Ton Chain Pulley Block is available in green color.
Q: What types of equipment can the 20 Ton Chain Pulley Block be used with?
A: The 20 Ton Chain Pulley Block is designed for use with Gantry Cranes, Bridge Cranes, Single Grinder Cranes, and Lifting Platforms.
Q: Can the size of the 20 Ton Chain Pulley Block be customized?
A: Yes, the size of the 20 Ton Chain Pulley Block can be customized according to specific requirements.
Q: Is the 20 Ton Chain Pulley Block suitable for industrial lifting applications?
A: Yes, the 20 Ton Chain Pulley Block is ideal for heavy-duty industrial lifting applications.
